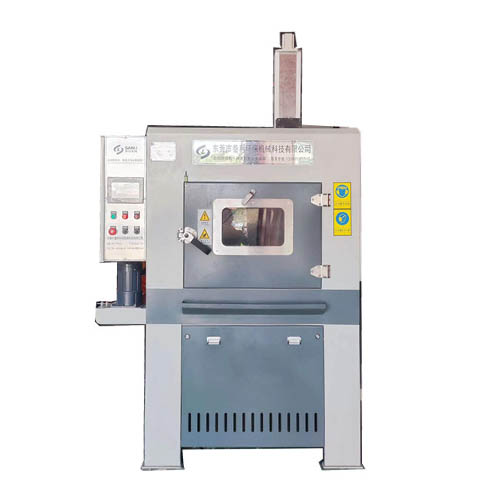

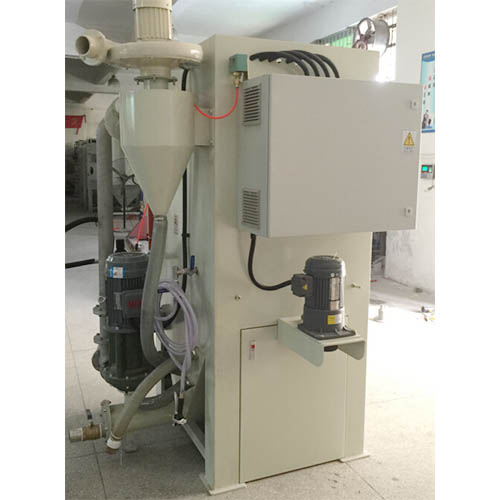

This semi-automatic liquid sandblasting machine is specially designed for the automated sandblasting of perforated CNC blades, rod-shaped integral tools, and circular saw blades. It utilizes the negative pressure generated by high-speed compressed air flowing through the spray gun to draw a mixture of sand and water (sandblasting medium) through a sand pipe. The mixture is then ejected onto the workpiece surface at high speed, achieving a passivation effect. The main body is constructed of 304 stainless steel, with key components imported or from renowned joint venture brands. It utilizes a high-efficiency, wear-resistant sand pump and is equipped with four dedicated sandblasting guns. The machine features stable operation, uniform spraying, automatic sand and water recycling, and durable, wear-resistant key components. This closed-loop system is equipped with an independent water mist exhaust and dust removal system to completely eliminate dust contamination.
Equipment Features:
1. Compact, small footprint, and stable and reliable operation.
2. All process parameters are easily adjustable and controllable, making maintenance and inspection easy.
3. The turntable accepts both blades and integral cutters, providing greater processing adaptability.
4. A CNC touch screen panel allows for easy storage and recall of recipes and processes.
5. Available in single-slide and dual-slide gun mount modes.
Applications: Liquid fine blasting and edge passivation of CNC blades, end mills, toolholders, hobs, and circular saw blades. It can also be used for pre-treatment of these products before PVD and CVD coating to improve adhesion, clean drips after coating, and improve coating quality. The passivation value is adjustable from 10-60µm.
Applicable abrasives: 180-1000 mesh alumina and industrial glass beads.
