In the field of metal surface treatment, traditional manual cleaning methods are gradually being phased out due to their low efficiency and high pollution levels. Crawler-type shot blasting machines, with their high efficiency and automation, have become the new favorite in the industry. Through their unique "continuous conveying + multi-angle shot blasting" mechanism, these machines rapidly clean and enhance the treatment of impurities on metal workpiece surfaces. They are widely used in industries such as casting, forging, and machining. A deeper understanding of the workings of crawler-type shot blasting machines not only provides insights into the innovations of modern industrial technology, but also reveals the significant value they bring to businesses in reducing costs and increasing efficiency.

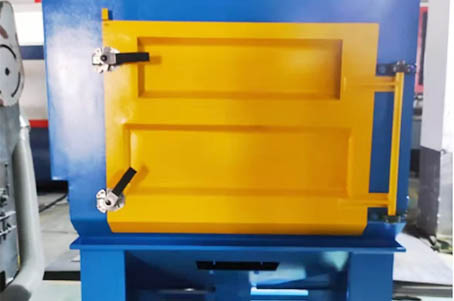

The workflow of a crawler shot blasting machine starts with a continuous conveying system, which is the foundation for the efficient operation of the entire equipment. The circular crawler belt inside the equipment is made of high-strength, wear-resistant steel or metal. It is driven by a motor to achieve high-speed rotation of the wheel. When the metal workpiece to be processed is placed on the crawler belt, the crawler belt will transport it into the shot blasting chamber at a steady speed. This continuous conveying method breaks the limitations of traditional intermittent processing and can achieve batch and uninterrupted processing of workpieces. After introducing a crawler shot blasting machine, an automotive parts manufacturer increased the cleaning efficiency of small castings by 5 times, and the continuity of the production line was greatly enhanced. At the same time, the crawler belt surface is designed with special grooves or protrusions to effectively prevent the workpiece from sliding or rolling out of control during transportation, ensuring that the workpiece is always in a perfect shot blasting position.
Once inside the shot blasting room, the multi-angle shot blasting system comes into play. Multiple shot blasters are evenly distributed around the perimeter and ceiling of the shot blasting room. These act as precise "metal cleaners." Their internal impellers rotate at high speeds of 2,000-3,000 rpm, projecting abrasives such as steel and iron shots at precisely defined angles onto the workpiece surface. By strategically positioning and angleing the shot blasters, comprehensive, no-dead-angle cleaning is achieved. For example, for complex workpieces like gears and chains, the shot blasters simultaneously project abrasives from multiple directions, including top, bottom, and left, right, ensuring thorough removal of scale and rust from hidden areas like tooth gaps and grooves. Furthermore, some advanced crawler-type shot blasting machines utilize variable frequency control technology, enabling real-time adjustment of the shot blaster speed and shot flow rate based on the workpiece material and cleaning requirements. For harder alloy steel workpieces, the shot blasting force is increased; for thinner sheet metal, the force is reduced to avoid damage.
During the shot blasting process, the crawler shot blasting machine also features an efficient steel shot recycling system. After the abrasive impacts the workpiece and completes its cleaning task, it, along with impurities, falls into a shot hopper at the bottom of the shot blasting chamber. The shot hopper transports the mixture via a screw conveyor to an elevator, which then feeds it to a separator. The separator uses gravity and airflow to separate qualified steel shot from crushed abrasive and impurities. The screened steel shot is then returned to the shot blasting machine's storage hopper for recycling. This closed-loop system not only reduces abrasive consumption costs but also reduces waste emissions, aligning with the philosophy of green production. Statistics from a construction machinery company show that after using crawler shot blasting machines, the recycling rate of steel shot has reached over 95%, saving hundreds of thousands of yuan in abrasive procurement costs annually.
To ensure safe and stable operation, the crawler shot blasting machine is equipped with multiple protective and monitoring devices. The shot blasting chamber utilizes thickened steel plates and a wear-resistant lining to prevent high-speed shot from penetrating the chamber. Photoelectric sensors are installed at the machine's entrance and exit. When a person approaches, they automatically reduce the belt speed or suspend the shot blasting operation. Furthermore, an intelligent monitoring system monitors parameters such as the shot blaster's speed, shot flow rate, and crawler track status in real time. Any anomalies trigger an immediate alarm and shutdown, preventing equipment failure and workpiece damage.
From the efficient flow of continuous conveying, to the one-on-one cleaning of multi-angle shot blasting, to the energy-saving and environmentally friendly steel shot recycling, the operating logic of crawler shot blasting machines fully embodies the intelligent and sophisticated development of industrial equipment. With the continuous advancement of technology, crawler shot blasting machines are expected to integrate AI visual recognition technology in the future to automatically detect the cleaning effect of workpiece surfaces and integrate with the Internet of Things to achieve remote monitoring and fault warning. This continuous innovation of equipment is injecting new vitality into the metal surface treatment industry and driving the manufacturing industry towards higher quality development.
