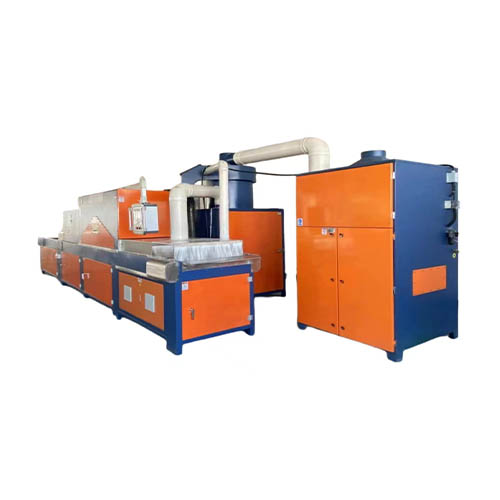

1. This equipment is suitable for fully automated production lines for deburring thermosetting materials and brittle plastics. It primarily includes a silent dust collector, sandblasting chamber, stainless steel conveyor chain conveyor, sand and dust cyclone separation chamber, stainless steel vibrating screen, volute cyclone separation system, and an elevator screening system. It automates the deburring process after products exit the injection molding machine, saving labor and achieving automated, highly efficient production.
2. Equipment Features: The equipment utilizes a tunnel-type continuous flow design and is controlled by a PLC programmable manual/automatic control system. It features data memory and alarm functions, allowing for convenient storage and recall of relevant production parameters (e.g., travel time, blasting speed, static buffer time, plasma static elimination switch, etc.).
3. Features
1) The machine features easy loading and unloading, simple operation and learning, and easy maintenance. It can also be used with robots in the future.
2) The sand material is automatically recycled, and the first-stage cyclone sand screen effectively separates dust and maintains uniform sand material.
3) After two stages of separation, such as cyclone separation and screening, the sand material achieves excellent uniformity, contributing to stable and sustained processing quality.
4) Products are manually placed into the equipment's conveyor basket. A drive chain drives the rotating basket, which then moves at a constant speed through the impact zone until it engages the rack.
